BiomimeticBlades™ – For drive systems
Turn drones into birds – quietly and efficiently
1.Phase: 7 dB(A)
Noise reduction over the entire frequency band
> 10%
Better thrust/efficiency
10+
Elaborated structures
Fly quieter. Fly further.
Scho & Müller GmbH has developed biomimetic propellers that reduce acoustics, specifically influence disturbing frequency ranges and at the same time increase efficiency and range. As a plug-and-play solution, without having to change electronics or battery capacity.
Fig. 1: Schematic representation to illustrate the basic biomimetic principle. No representation of the actual level of development or the real rotor blade geometry!
OUR APPROACH
Multi-source bionics development
Nature is used as a toolbox optimised for over 3.8 billion years. From over one million biological studies/data, the most efficient structures from the world of birds, plants and underwater organisms are selected and transferred to rotor blades.
The unpleasant, characteristic and recognisable noise of a rotor blade can thus be specifically influenced!
measurement results
7 dB(A) quieter
A biomimicry propeller for drones (UAVs) shows here in direct comparison with conventional rotor blades a reduction in the sound level by almost 7 dB(A) over the entire frequency band with more than 10% better thrust or Efficiency.
The long-term target, according to the latest evaluations, will be 15 dB(A) and around 30% better thrust/efficiency.

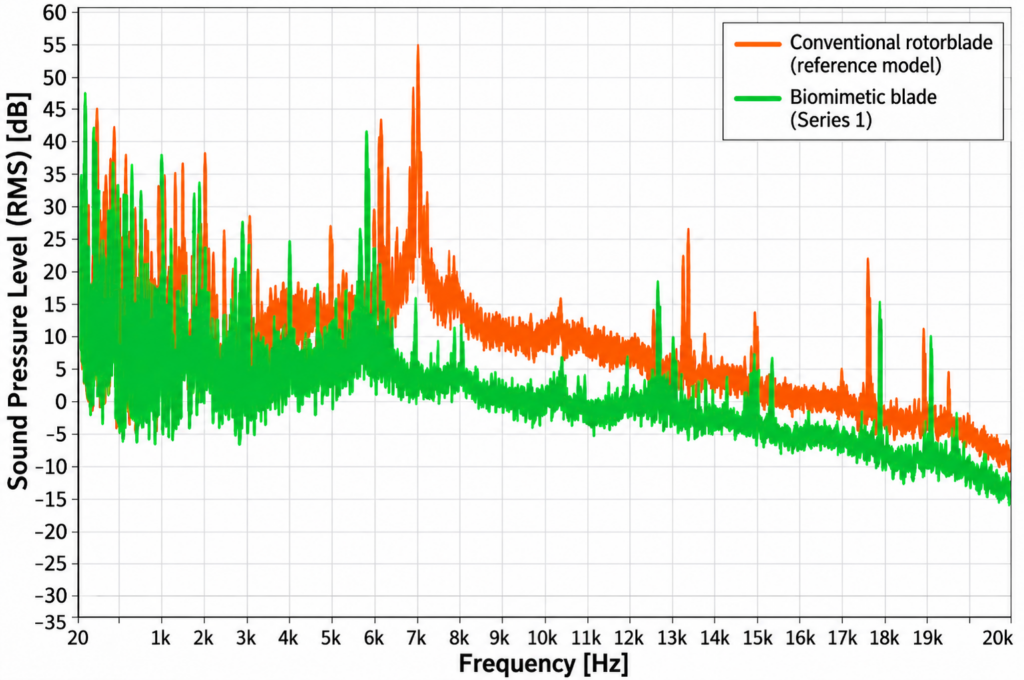

Fig. 2: Comparison of the frequency spectrum of a conventional rotor blade with the biomimetic blade from the first prototype series.
Fig. 3: Light microscope image of a leaf edge (100x magnification) with micro-serrated edge and fine surface texture. Scale: 500 µm.
FactorING
Production in the micrometre range
This makes precise manufacturing possible. We produce coarse structures in the millimetre range as well as fine structures in the micrometre range, which are only visible under magnification. The image shows a microserrated surface texture. The serration breaks up vortices and thus reduces the noise formation.
More than ten structures that we have already developed for a technical application are now being made scalable for various applications based on the Reynolds number.
Development, construction, prototype production and industrialisation take place in Germany. We also strive for large-scale series production with manufacturers in Germany and Europe.
YOUR USE
Fly quieter, fly further
Plug and Play
Also for existing drones. In this way, the technology can be economically integrated without having to redevelop the entire system.
Volume & Range
The thrust/efficiency increases because sound itself represents lost energy. It means less power loss, longer battery life and longer range with identical payload.
Widely transferrable
The approach works in all systems in which something rotates or a fluid flows around: propellers and rotors for multicopters, aircraft and hybrid systems as well as fans, blowers and cooling systems.
LEARN MORE
The foundation behind it
Fluid Technology & Aerodynamics
Analysis and optimisation of aerodynamicCurrents on propellers, fans andHeat exchanger systems.
Biomimicry (according to DIN EN ISO 18458)
Analysis of biological systems andTransfer of natural solution strategiesIn technical models.
Research, development & prototyping according to ISO 56001
From the idea to the implementable solution: CAD construction, FEM and CFD simulations to functional prototypes.
Contact
Ready for your next project?
We look forward to your inquiry, whether concrete project, open question or first idea.
